Threaded Shank Bits

As always, if you are looking for a product that you do not see below, please reach out, and we can explore opportunities for custom orders.

CONTACT US

M2 High Speed Steel 7/16-14” Steel Threaded Shank Dowel Drill Bits

(#203), 3” Twist, 4-1/2” Overall

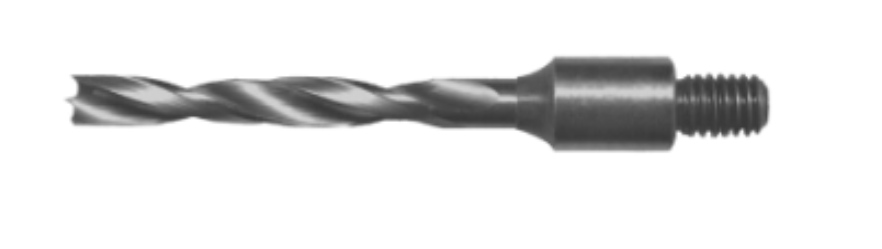

Close-up of a metal drill bit with twisted flutes and a threaded shank.
A detailed chart listing different items with specifications including item number, diameter, twist, overall length, and rotation direction. The chart shows various measurements and directions, primarily right and left, with some items having different lengths and diameters.

M2 High Speed Steel 7/16-14” Steel Threaded Shank Dowel Drill Bits

(#203), 2” Twist, 3-1/2” Overall

Close-up of a metal drill bit with a threaded end.

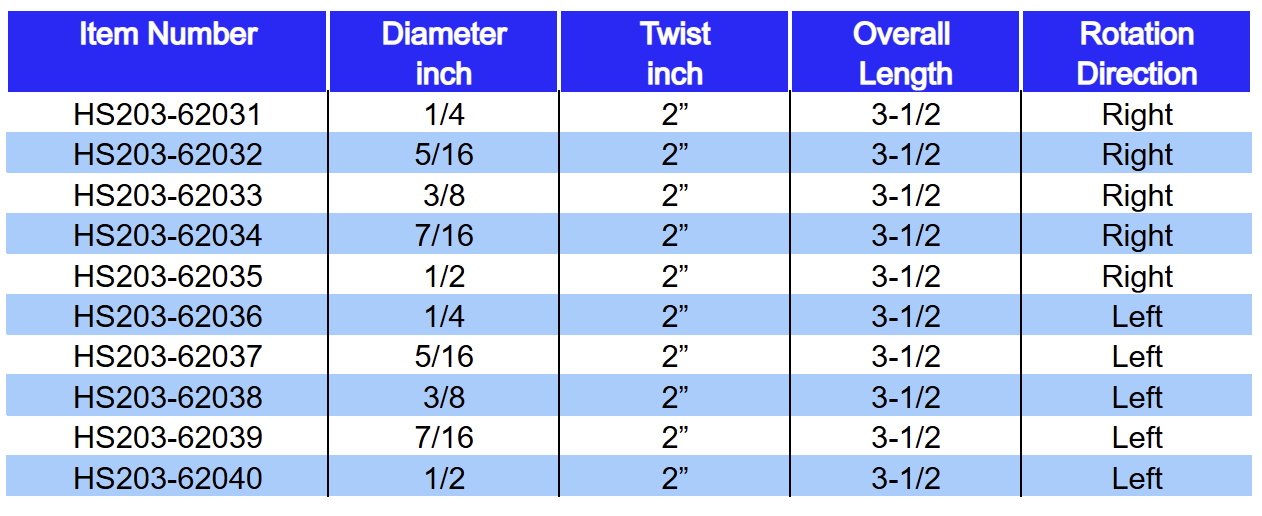

A table listing various part specifications such as item number, diameter in inches, twist in inches, overall length, and rotation direction, with some rows highlighted in blue.

M2 High Speed Steel 7/16-14” Steel Threaded Shank Dowel Drill Bits

(#203B), 1-3/4” Twist, 4-1/2” Overall Length

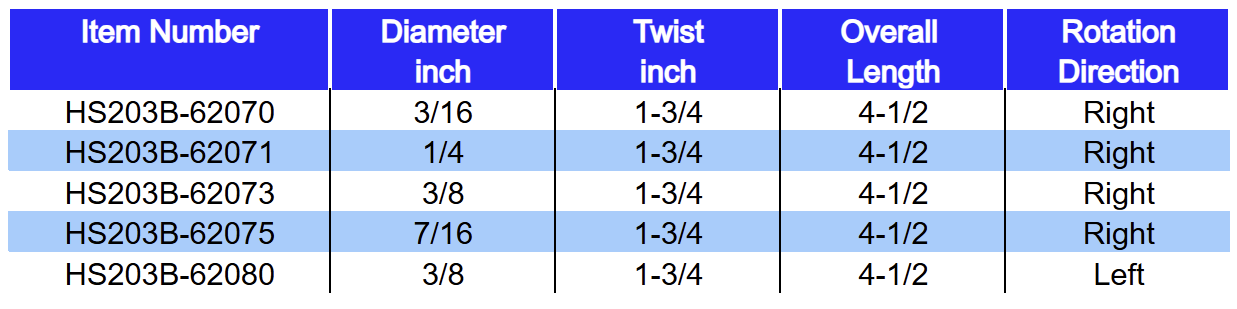

Table displaying item numbers, diameters, twists, overall lengths, and rotation directions of different items.

M2 High Speed Steel 7/16-14” Steel Threaded Shank Dowel Drill Bits

(#203J), 1-1/2” Twist, 2-3/4” Overall Length

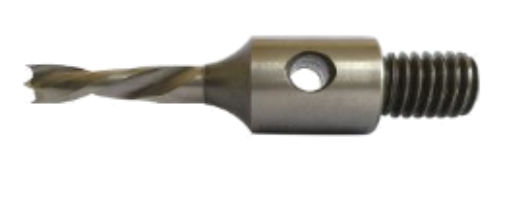

Close-up of a drill bit attached to a metal screw.

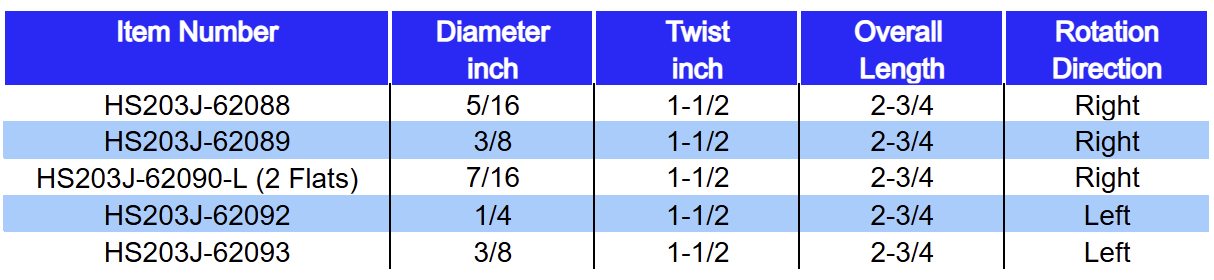

A table listing specifications of different items, including item number, diameter inches, twist inches, overall length, and rotation direction, with some rows highlighted in blue.

M2 High Speed Steel 7/16-14” Steel Threaded Shank Drill Bits

(#204) V-Points Drill Bits

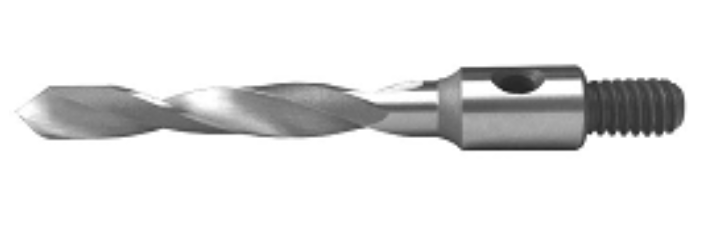

Close-up of a metal twist drill bit with a threaded shank on a white background.

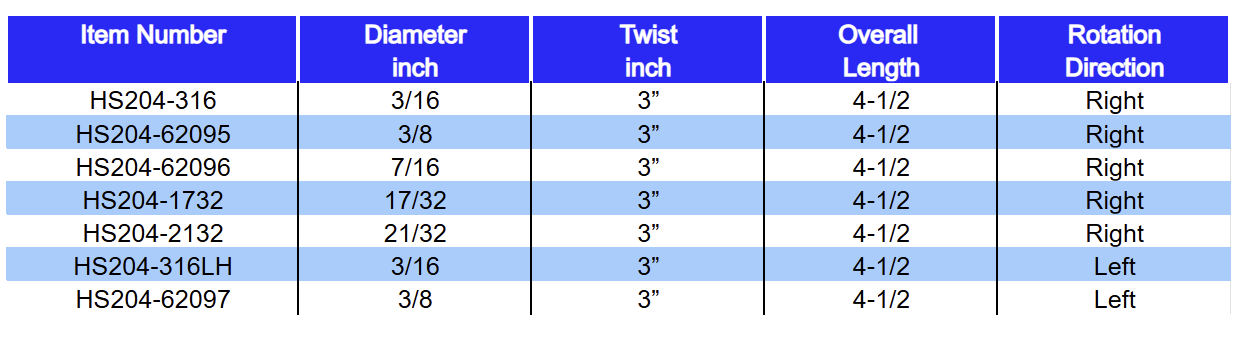

A table listing various items with columns for item number, diameter in inches, twist in inches, overall length, and rotation direction, which is either right or left.

Carbide Tipped 7/16-14” Steel Shank Dowel Drill Bits

(#203CT)

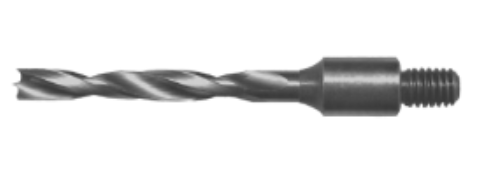

A close-up of a metal drill bit with a twisted design and a threaded shank.

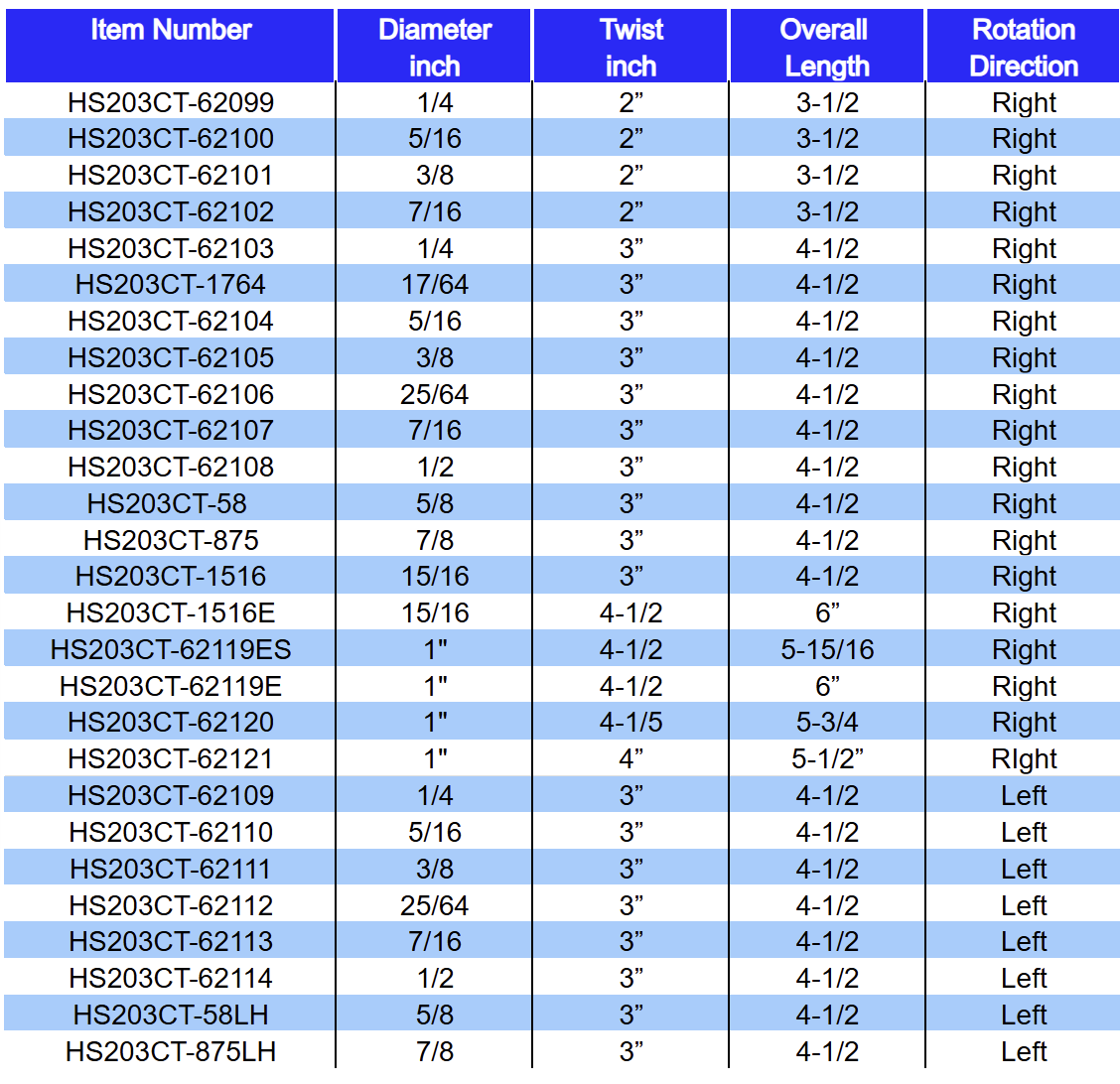

A size chart listing item numbers, diameters, twists, overall lengths, and rotation directions for various hardware components, with blue header and alternating white and light blue rows.
