Corrugated Knives

In the woodworking industry, a corrugated knife is a type of machine knife with a series of parallel ridges or grooves (corrugations) on its non-cutting edge. These corrugations are designed to fit into matching grooves in a cutterhead (typically a moulder or shaper head), allowing for a secure, non-slip, and safe clamping system. The primary purpose of the corrugated back is to allow the use of a wide range of custom profiles, such as unique crown mouldings, baseboards, or panel raisers, and to securely hold the knife in place, preventing it from slipping under the high cutting forces involved in shaping these wood pieces. As always, if you are looking for a product that you do not see below, please reach out, and we can explore opportunities for custom orders

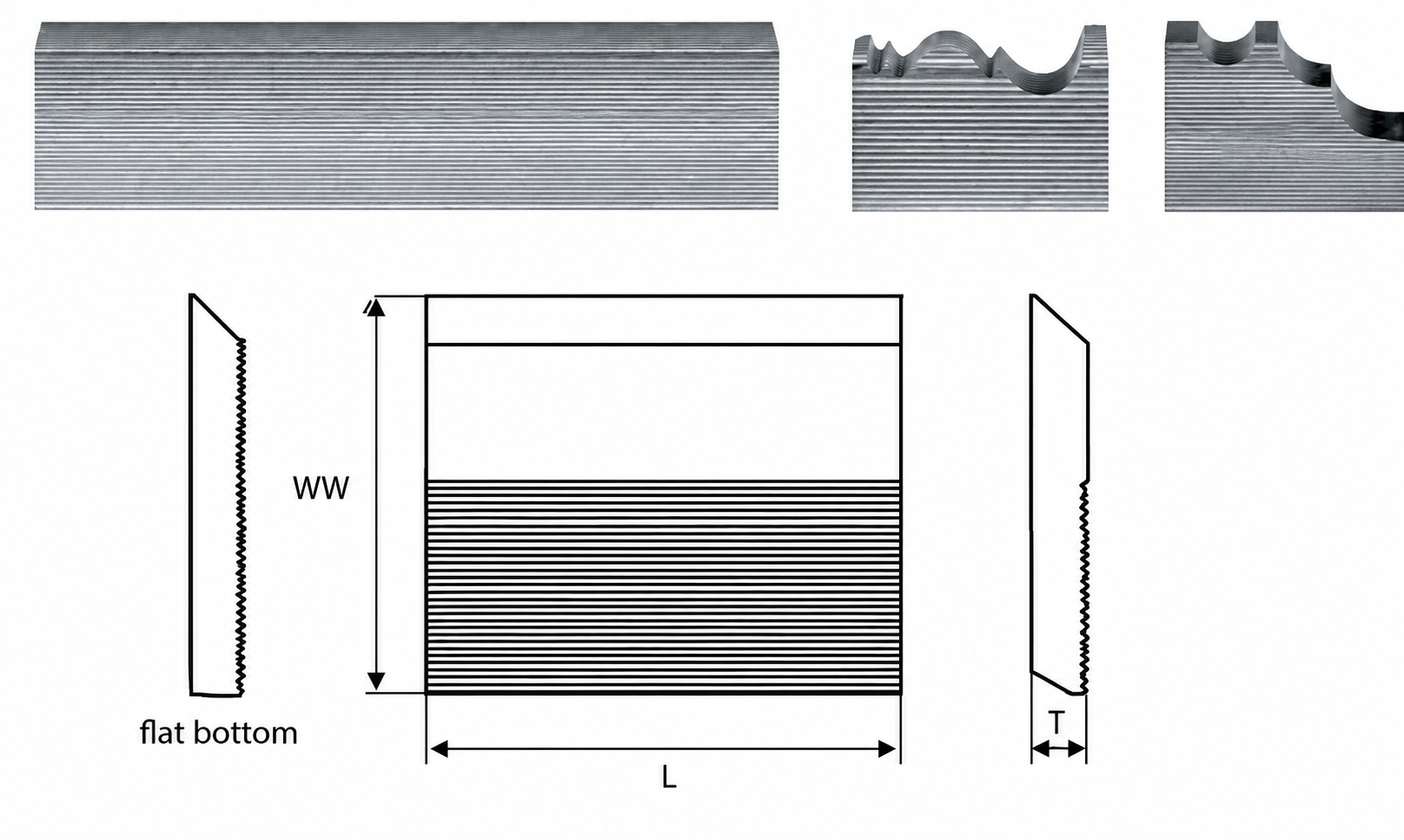

M2 High Speed Steel Corrugated Knife

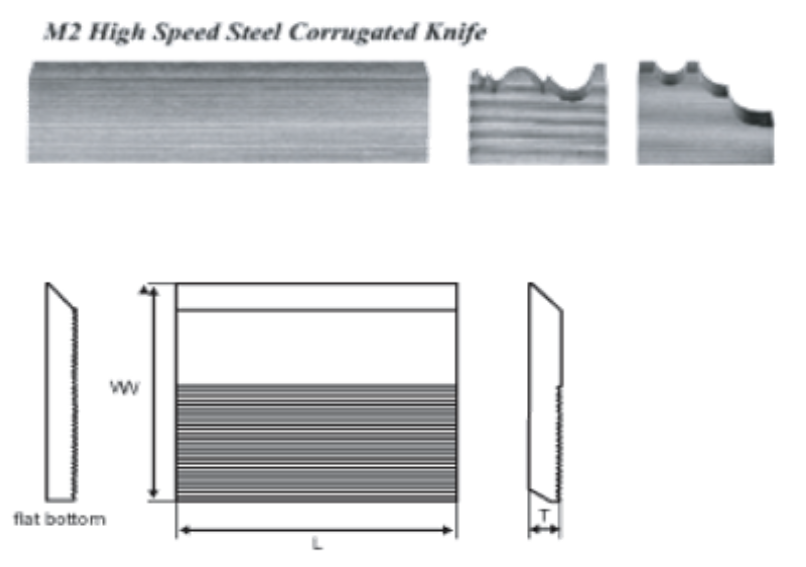

Diagram of an M2 high-speed steel corrugated knife with detailed side views, top view, and measurements for width and length.

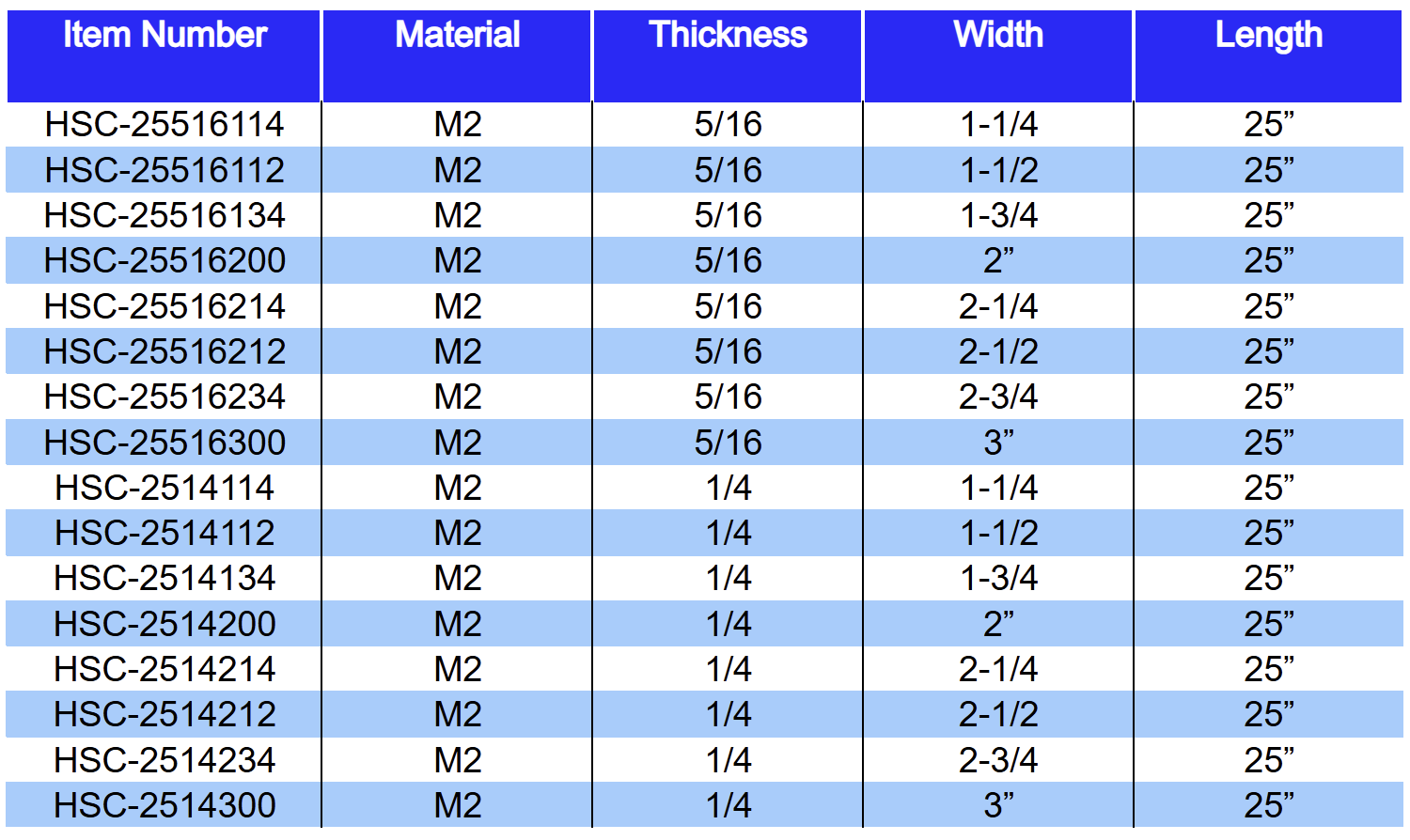

A table of metal fasteners with columns for item number, material, thickness, width, and length, showing the details for each item.

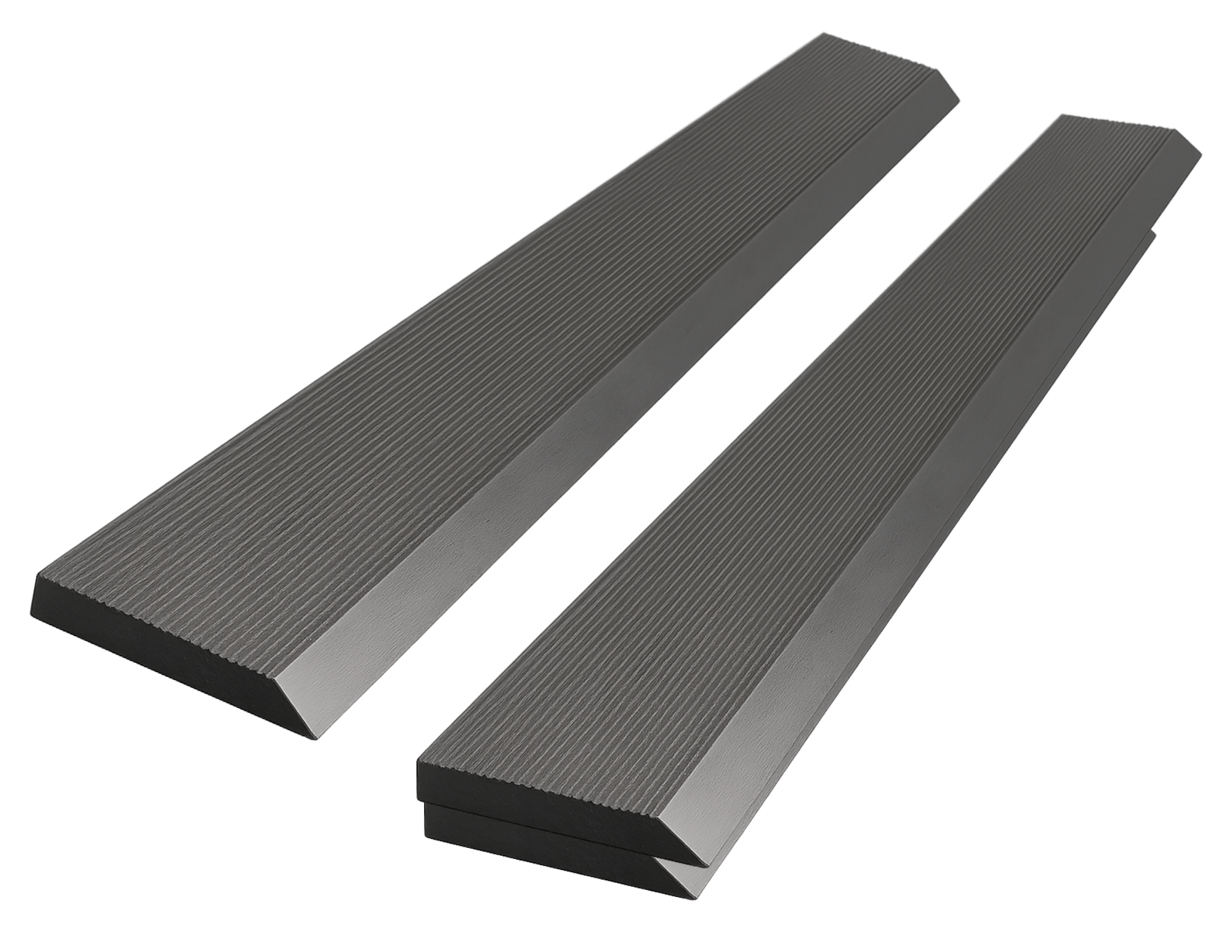

Corrugated Carbide Inlay

Two black rubber speed bumps with textured surfaces for vehicle and pedestrian safety.

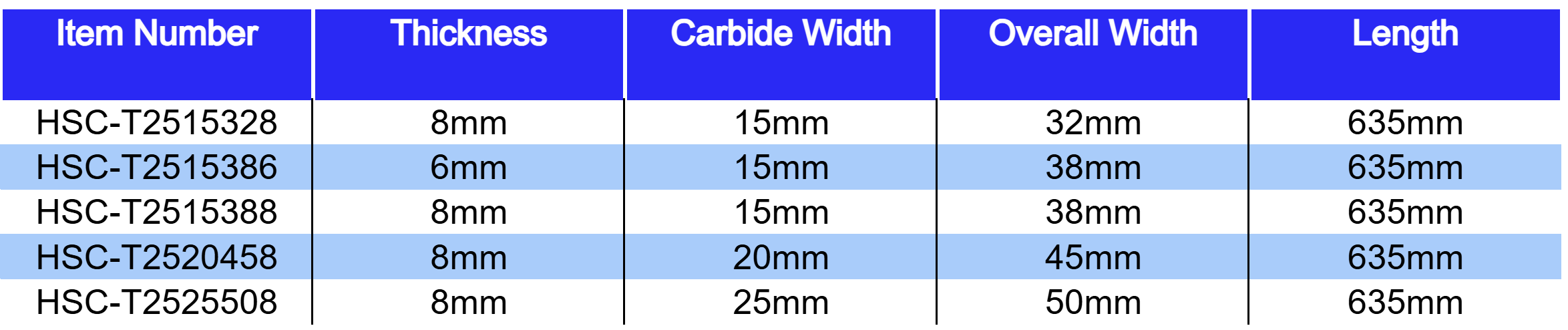

Table with columns for item number, thickness, carbide width, overall width, and length. Lists specifications for various items, including item numbers HSC-T2515328, HSC-T2515386, HSC-T2515388, HSC-T250458, and HSC-T2525508, with dimensions mostly 8mm thickness and 15mm to 25mm carbide width, all 635mm long.
