Metric Boring Bits

Our metric boring bits are precision-machined for accurate hole drilling on industrial boring machines used throughout the woodworking and cabinetry industries. The line includes carbide-tipped brad point, hinge, countersink, and 60-degree V-point configurations, along with solid carbide V-point drills, available in multiple lengths and shank sizes. Right- and left-hand rotation options accommodate a wide range of boring machine setups, with matching adapters available for shops standardizing on a single spindle type.

Carbide-Tipped, Brad Point Metric Boring Bits

Length 57mm, Shank 10mm x 27mm

Diagram of a cutting tool with a metal shank and black cutting edges, including a detailed cross-sectional view.

Carbide-Tipped, Brad Point Metric Boring Bits

Length 70mm, Shank 10mm x 30mm

Carbide-Tipped, Brad Point Metric Boring Bits

Length 77mm, Shank 10mm x 30mm

Cross-sectional view of a fiber optic connector and its inner components.

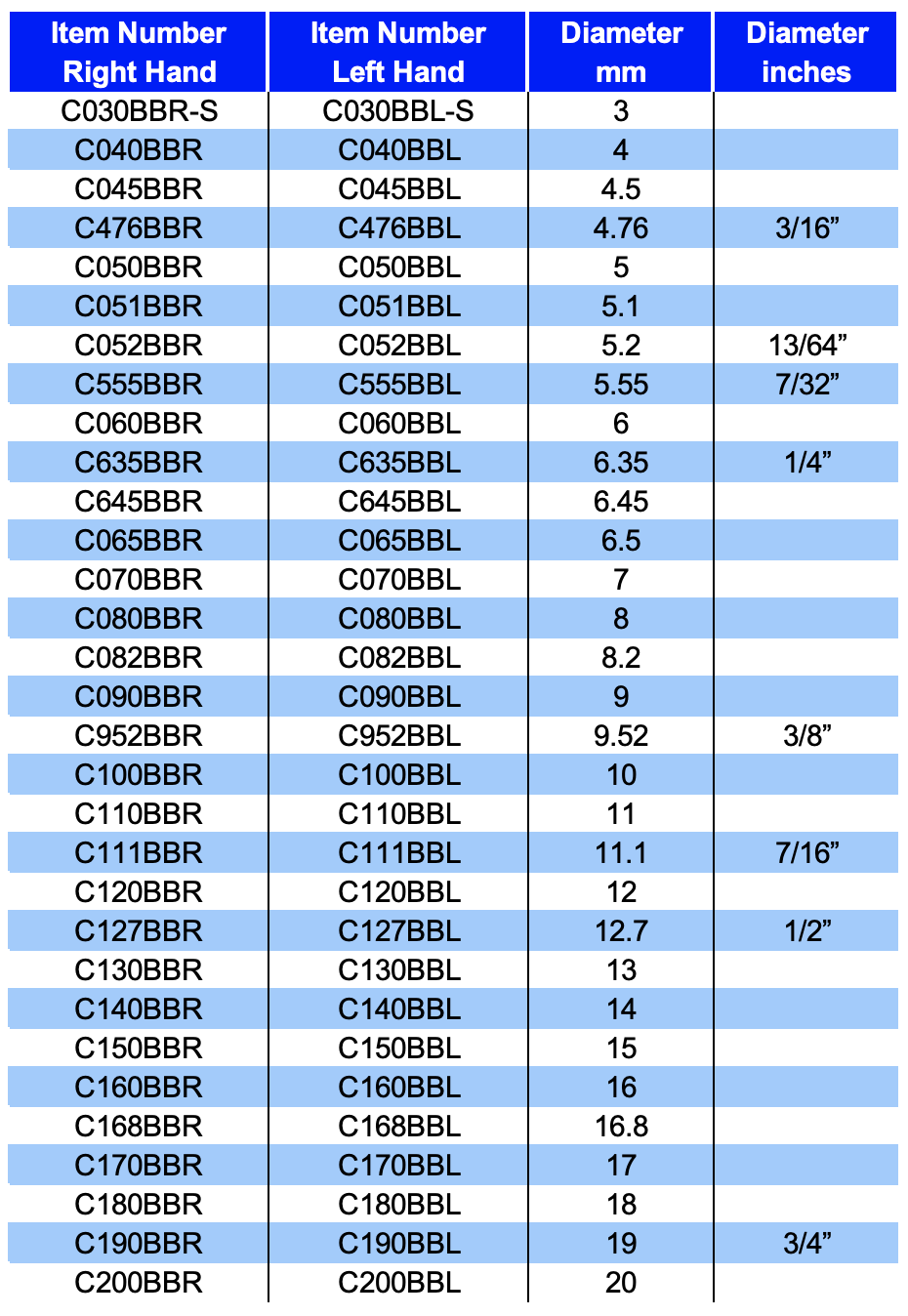

Table with columns for item number right hand, item number left hand, diameter in mm, and diameter in inches. The table lists various item numbers with their corresponding diameters and inches equivalents, with some rows highlighted in blue.

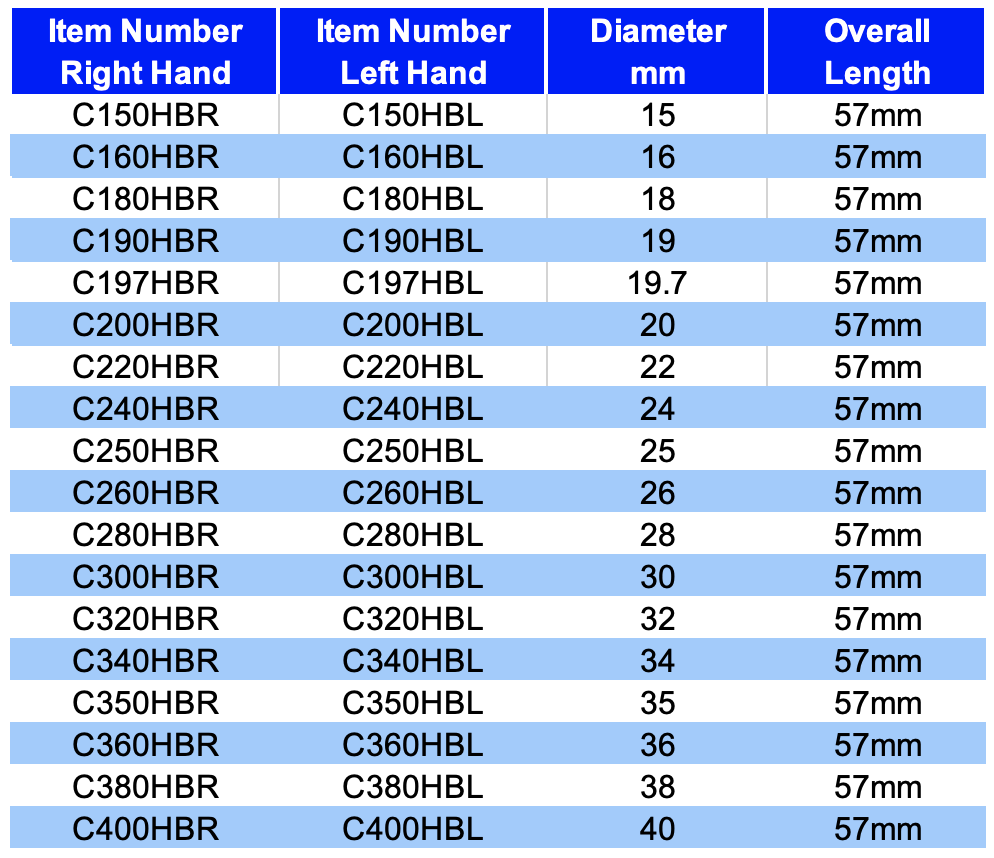

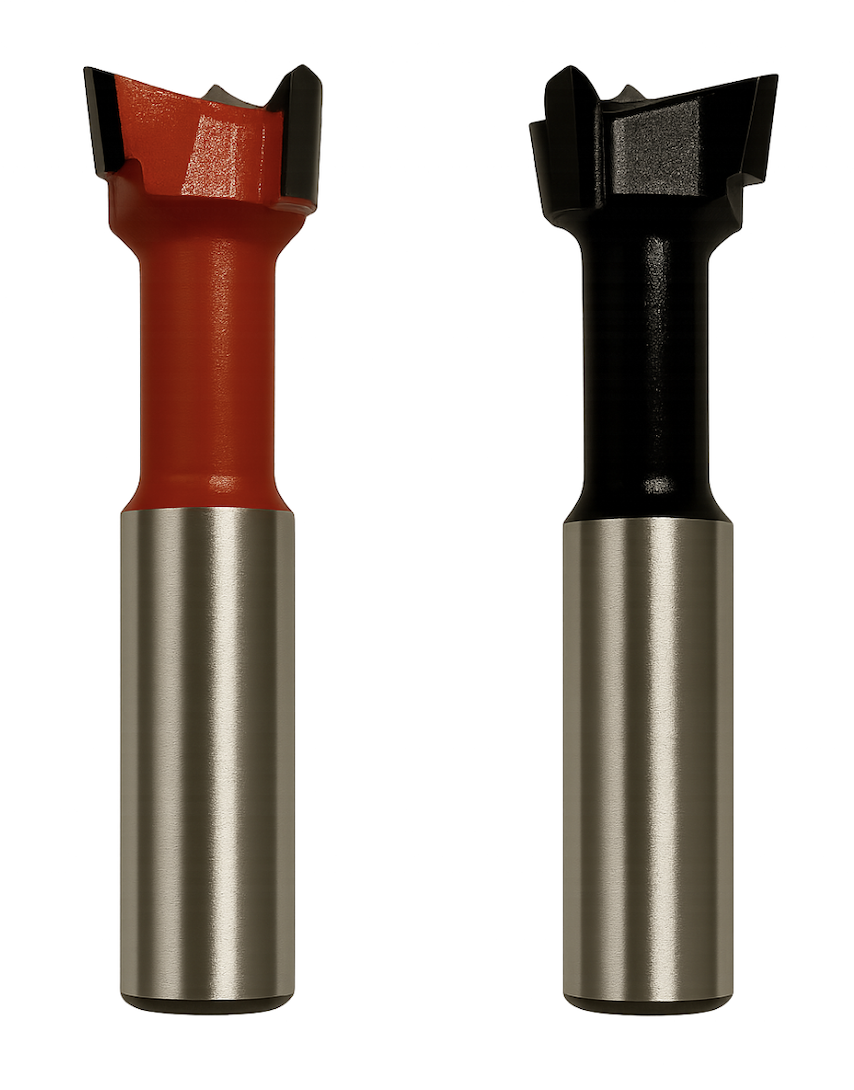

Hinge Metric Boring Bits

Length 57mm, Shank 10mm

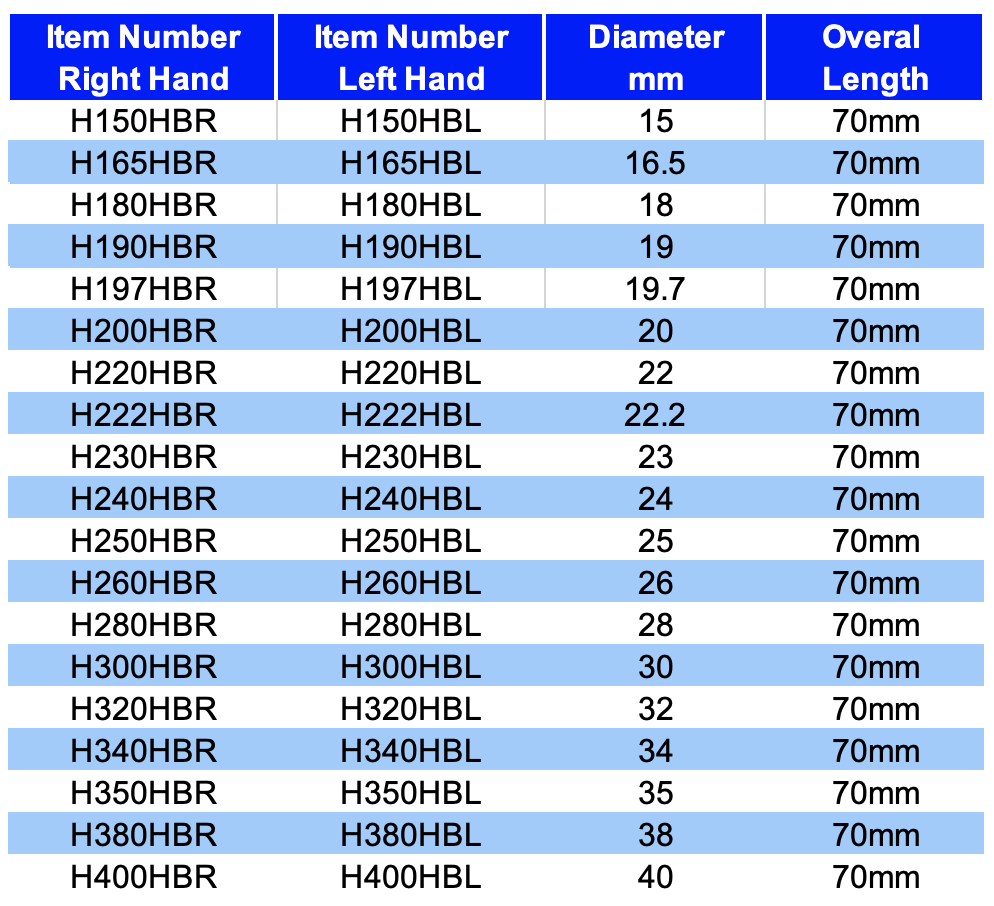

Hinge Metric Boring Bits

Length 70mm, Shank 10mm

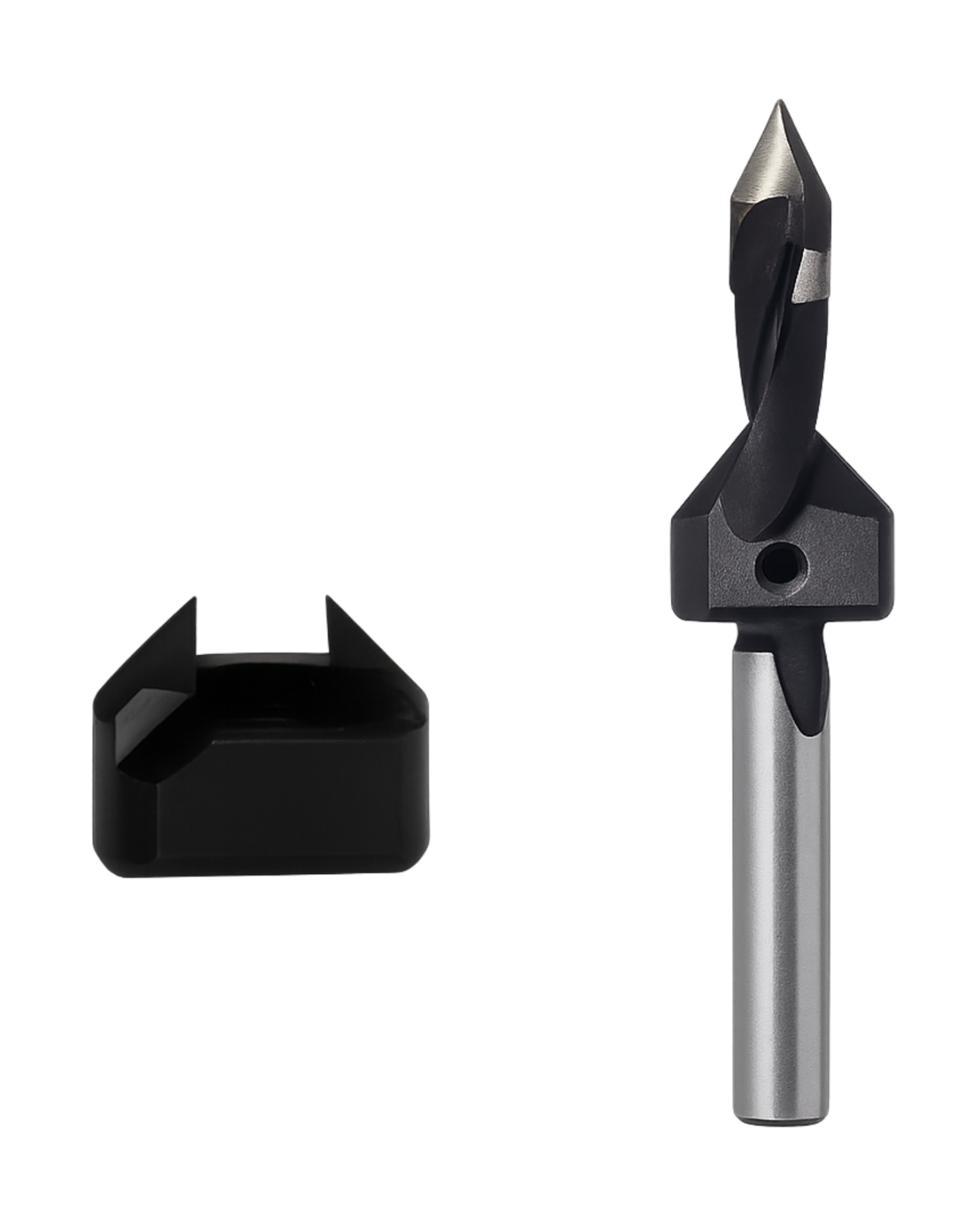

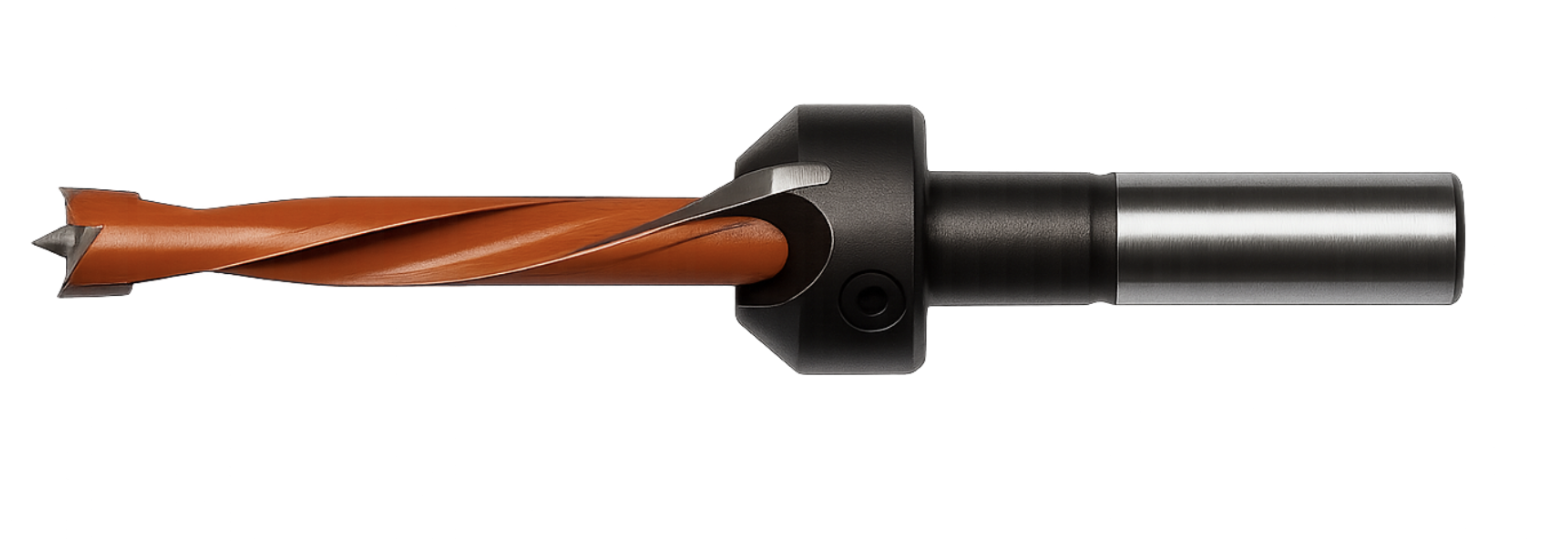

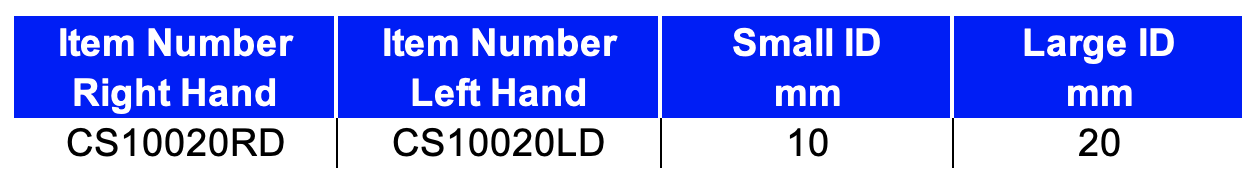

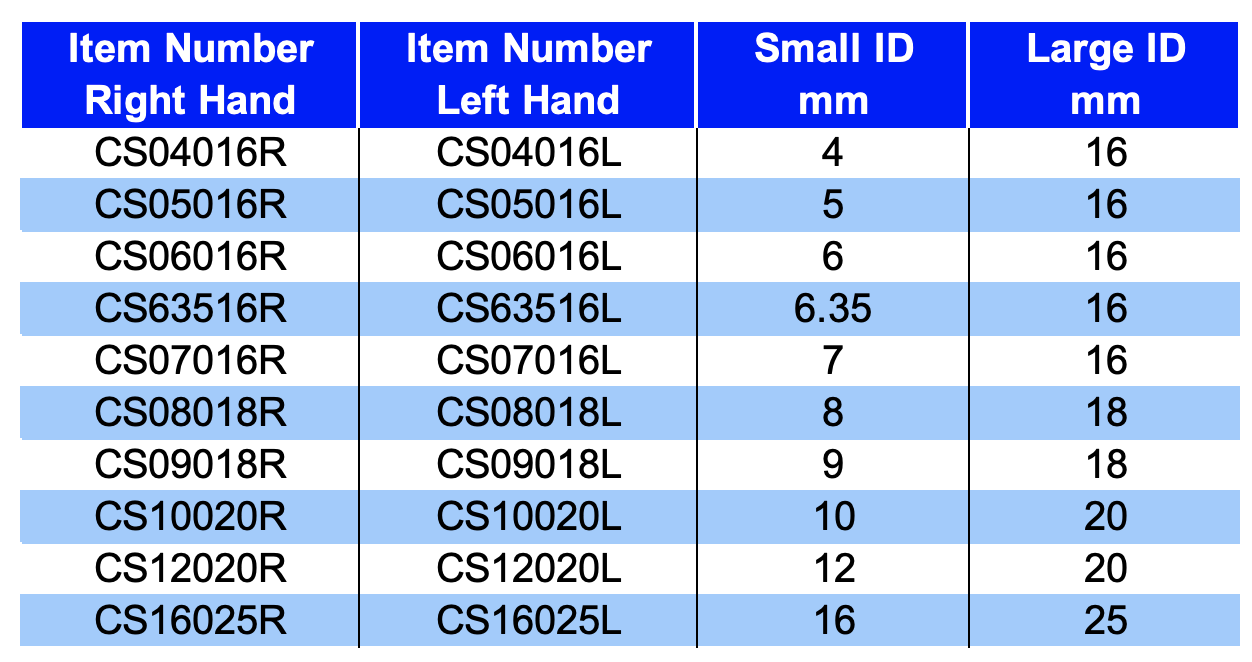

Carbide-Tipped Metric Boring Countersink Bits

Mounts on Spiral for Metric Boring Bits

Carbide-Tipped Metric Boring Countersink Bits

Mounts on Spiral for Metric Boring Bits

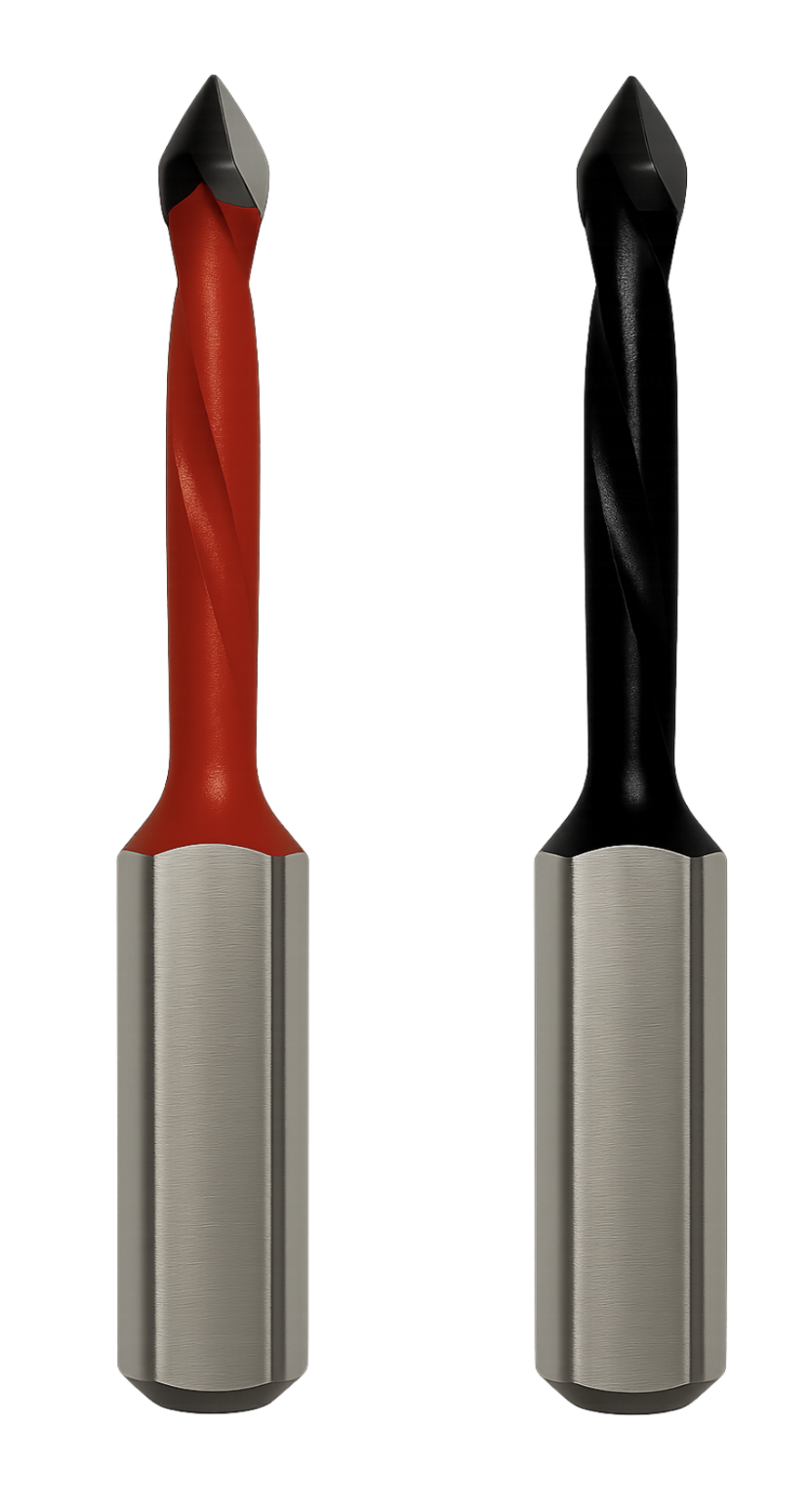

Carbide Tipped 60° V-Point Metric Boring Bits

Length 57mm, Shank 10mm x 27mm Boring Bit

A table listing various item numbers for drill bits with columns for right and left hand item numbers, diameters in millimeters and inches, with blue and white background rows.

Carbide Tipped 60° V-Point Metric Boring Bits

Length 70mm, Shank 10mm x 30mm

A chart displaying item numbers, diameters in millimeters and inches, with alternating rows in white and blue, listing various VBR items with their corresponding sizes.

Carbide Tipped 60° V-Point Metric Boring Bits

Length 77mm, Shank 10mm x 30mm

A table listing various item numbers with corresponding right and left hand codes, diameters in millimeters and inches, including sizes from 5mm to 12.7mm and 1/4 inch to 1/2 inch.

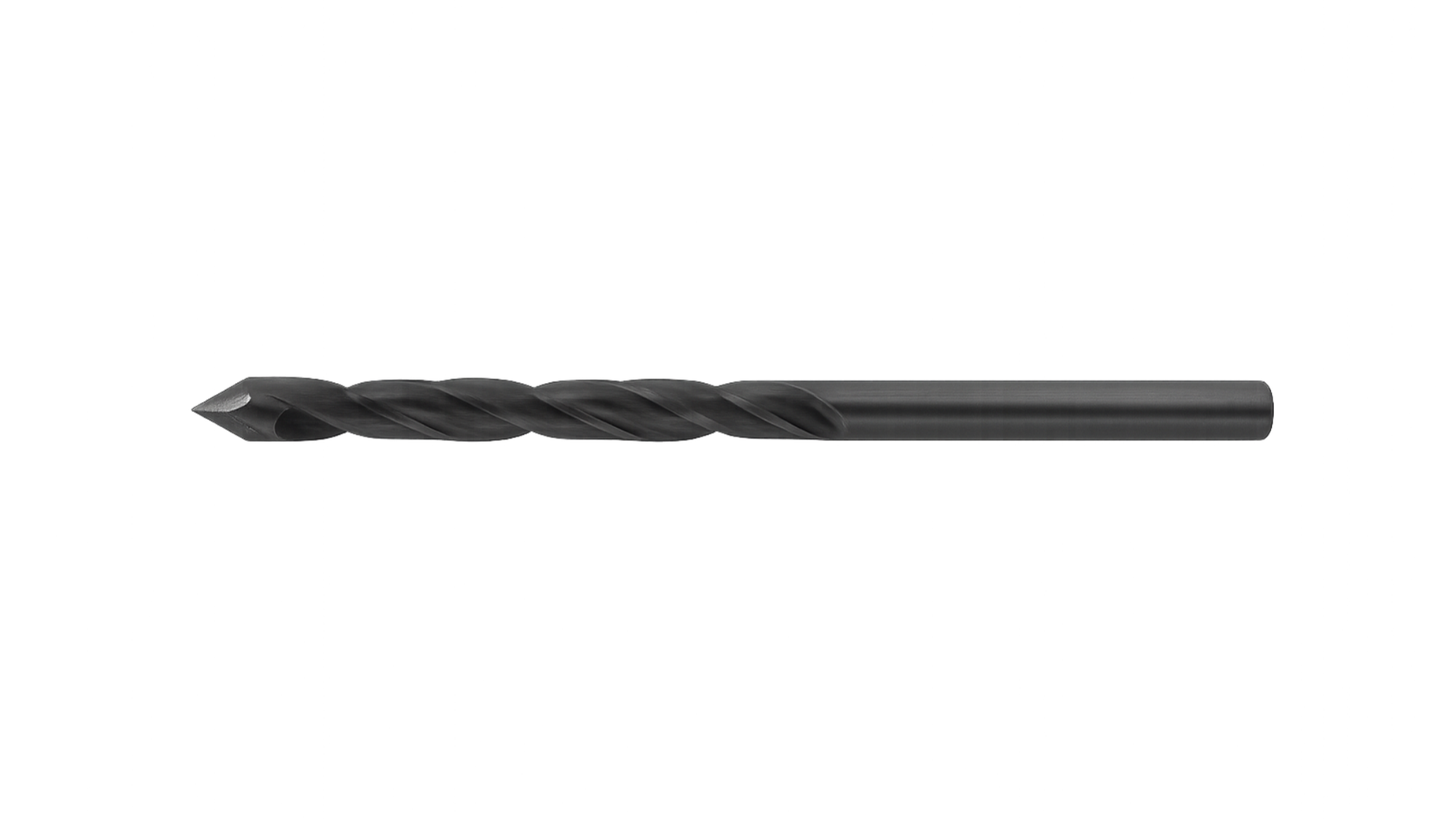

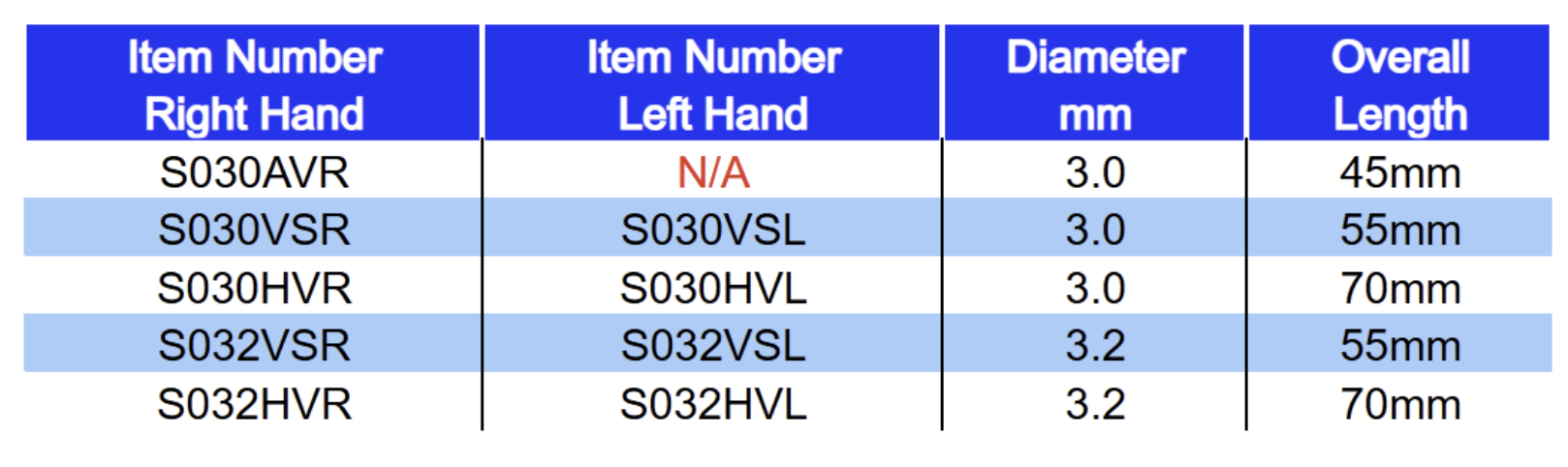

Solid Carbide V-Point Drill Bits

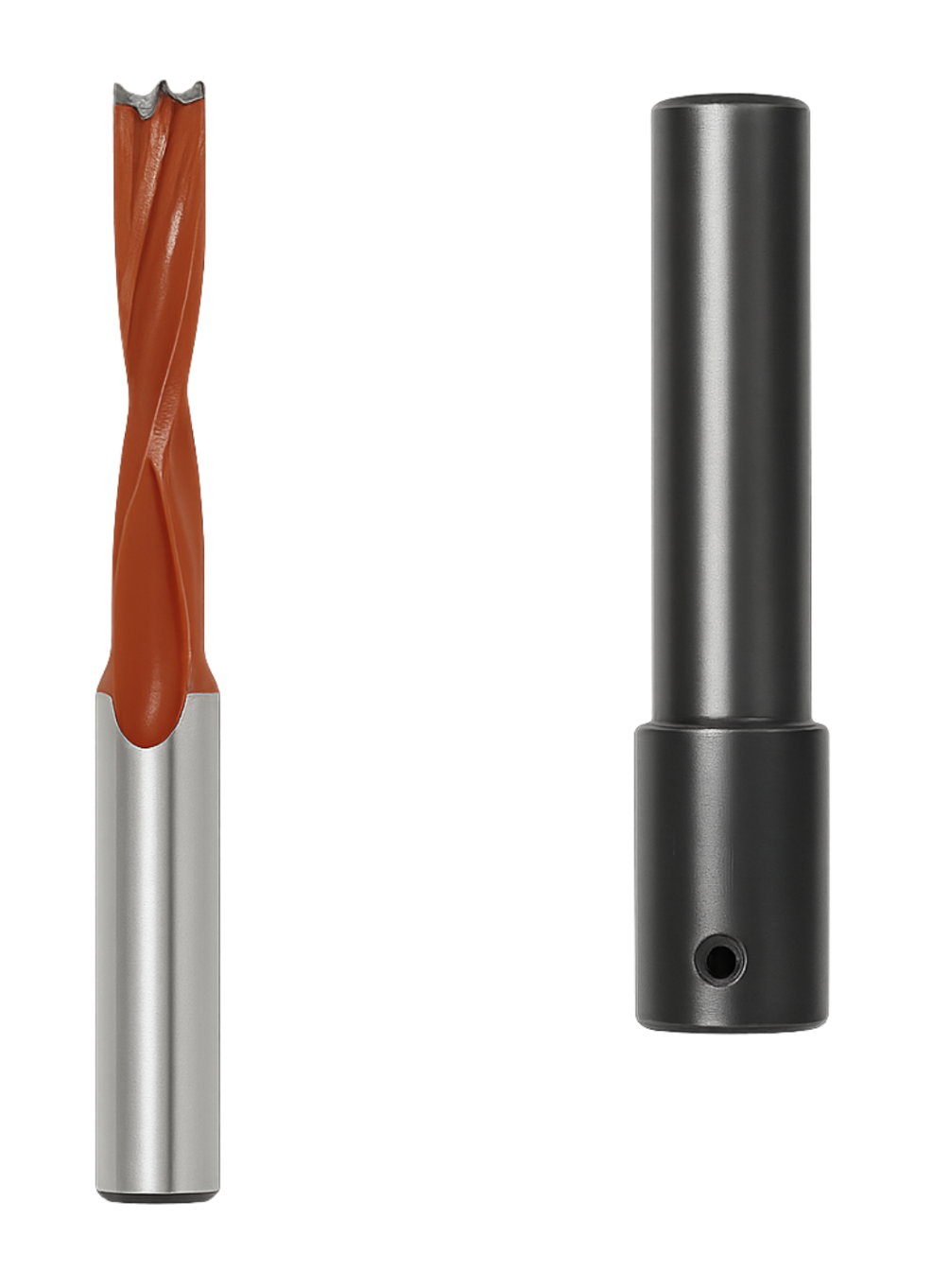

Metric Boring Bit Adapter

Converts Metric Boring Bits into Carbide Tipped #200 Bits (1/2” x 2” Shank)
